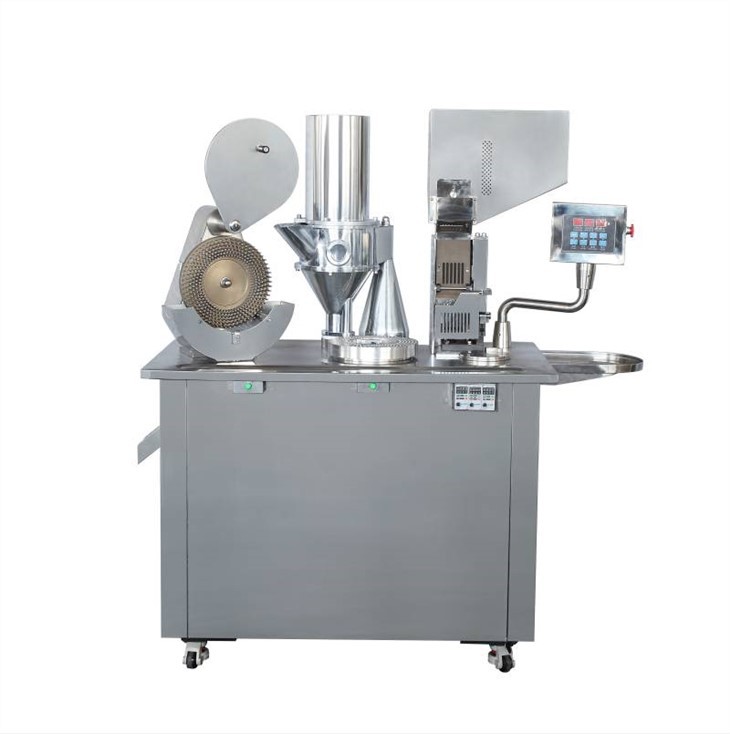

The Capsule Machine For Filling '00' Capsule



Applying:

The capsule filling machine is suitable for filling the powder or pallet into the empty capsule.which is suitable for medium & small pharmaceutical factory, hospital preparation lab, etc. The machine is adopted programmable control system, touch panel operation, step-less transduction to speed-shift, and electronic automatic counter. And it can automatic complete the action of position, separation, filling, locking, etc. The dosage is accurate, and the operation is convenient. The overall machine is made of stainless steel, and it is suitable for the capsule which is filled with powder and grain.



Parameters:



Max. Output	20,000 capsules/hour
Suitable for Capsule	00,0,1,2,3,4
Vacuum Pump	40M3/H
Noise	<60dB(A)
Capacity of air compressor	0.1m3/min
Net weight	330kg
Gross weight	525kg
Overall Dimension	1200*700*1600mm

Why choose our capsule filling machine? We have made this machine for more than 15 years,our capsule filling machine quality and precision has reached the international first grade level,compare the Bosch capsule filling machine,our price is only 1/3 of Bosch capsule filling machine,but the quality only different a little.

Parameters:

Model	Capacity ( capsule /min)	Capsule Size	Filling rate	Power	Vacuum pump	Noise	Dust collector	Oversize and weight of machine
NJP-200	200	No.00-5	=>99%	3.5kw	0.02-0.06Mpa	<80dBA	700m3/H, 2X105pa, 350*700*1000mm, 40kg	870*670*1900mm, 700kg
NJP-400	400	No.00-5	=>99%	5kw	0.02-0.06Mpa	<80dBA	700m3/H, 2X105pa, 350*700*1000mm, 40kg	870*670*1900mm, 700kg
NJP-800	800	No.00-5	=>99%	5.5kw	0.02-0.06Mpa	<80dBA	700m3/H, 2X105pa, 350*700*1000mm, 40kg	970*820*1900mm, 900kg
NJP-1200	1200	No.00-5	=>99%	7kw	0.02-0.06Mpa	<80dBA	700m3/H, 2X105pa, 350*700*1000mm, 40kg	1020*860*1970mm, 1000kg
NJP-1500	1500	No.00-5	=>99%	7kw	0.02-0.06Mpa	<80dBA	700m3/H, 2X105pa, 350*700*1000mm, 40kg	1500*1040*1970mm, 1300kg
NJP-2500	2500	No.00-5	=>99%	7kw	0.02-0.06Mpa	<80dBA	700m3/H, 2X105pa, 350*700*1000mm, 40kg	1500*1040*1970mm, 1500kg

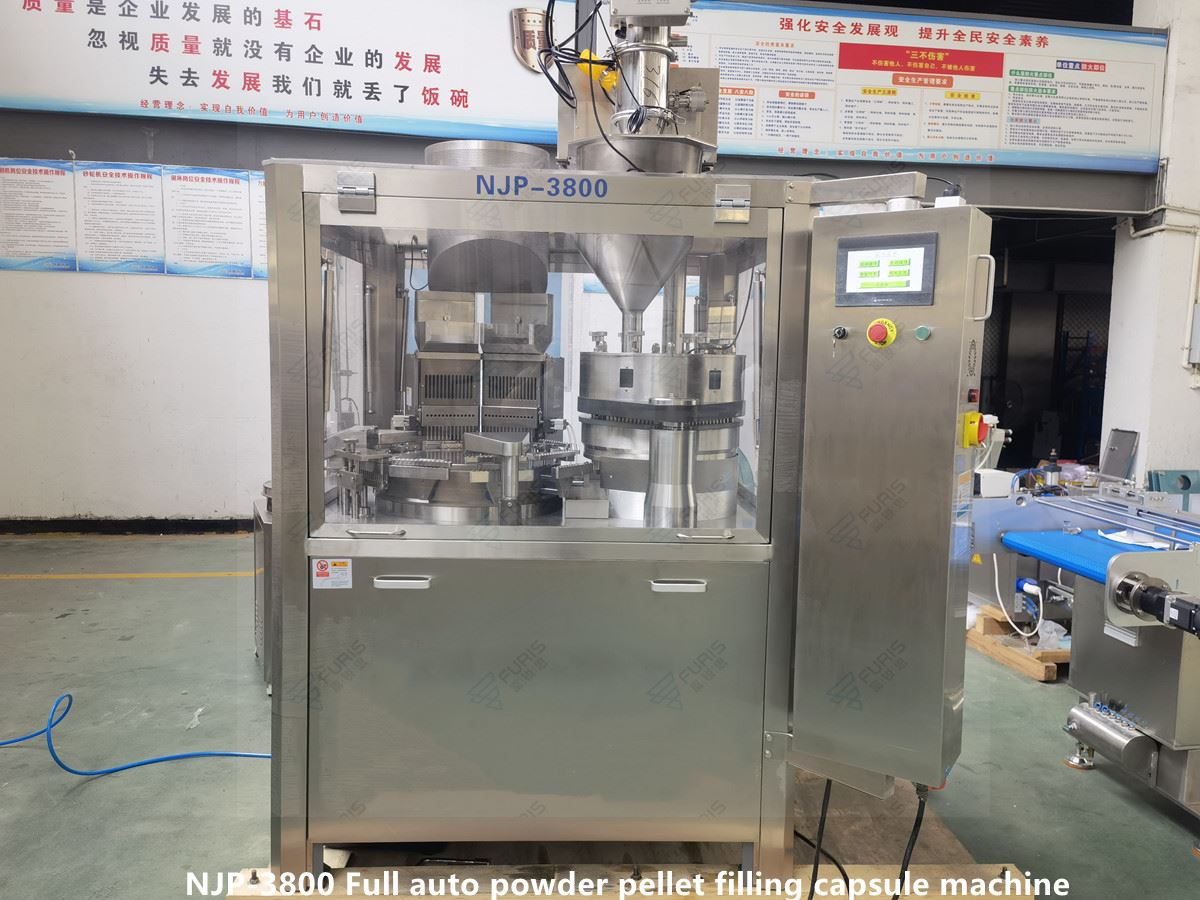

NJP-3800	3800	No.00-5	=>99%	7.6kw	0.02-0.06Mpa	<80dBA	700m3/H, 2X105pa, 350*700*1000mm, 40kg	1500*1450*2100mm, 2000kg
NJP-7500	7500	No.00-5	=>99%	13.5kw	0.02-0.09Mpa	<80dBA	900m3/H, 2X105pa, 350*700*1000mm, 40kg	1700*1450*2150mm, 3800kg
